VC5 The Self Clamping Vacuum Clamp.

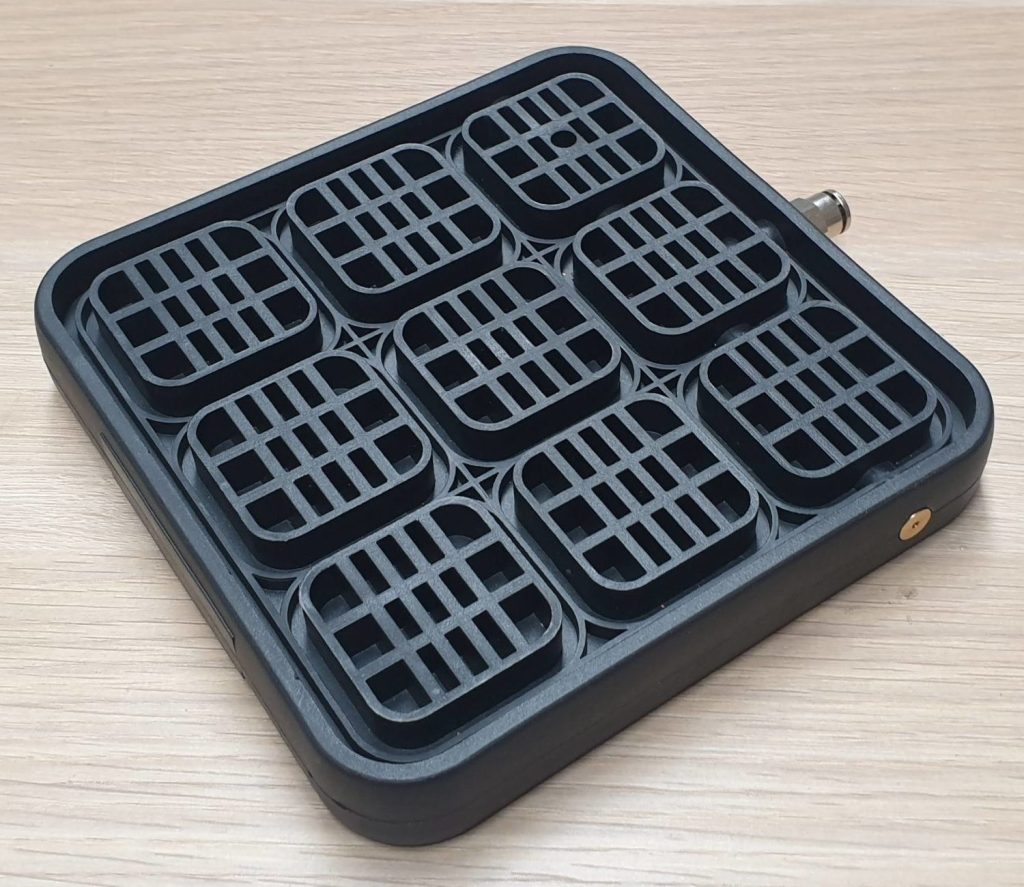

VC5 Vacuum Clamp from Vac-Clamp – Dual-Sided Pneumatic Driven Vacuum Clamp for Precision Work holding
The Vac-Clamp VC5 is a professional-grade, dual-sided vacuum clamp engineered for high-precision woodworking, machining, and finishing tasks. Designed to hold workpieces securely without leaving marks or requiring mechanical clamps, the VC5 uses compressed air to generate powerful suction both to the bench and to the workpiece—offering unmatched stability, flexibility, and workflow efficiency.
Key Features:
- Dual Vacuum Generators
The VC5 features two independent high efficiency venturi vacuum generators—one for securing the unit to the workbench and another for holding the workpiece. This allows the clamp to be used in vertical, horizontal, or even overhead positions, making it ideal for intricate operations like routing, sanding, carving, and finishing. - Instant, Mark-Free Holding
Securely holds non-porous materials (wood, plastic, aluminium, glass) without damaging their surfaces—ideal for delicate or finished components where traditional clamps are not suitable. - Robust, Maintenance-Friendly Design
Built from durable glass-filled nylon with brass internals, the VC5 is designed for an extremely long service life. The only wear item is the EPDM rubber seal, which is replaceable and user-configurable to suit a variety of part shapes and sizes. - Compact & Versatile
With a compact footprint of 160 x 160 mm, the VC5 fits easily into small or crowded workspaces while offering impressive holding force. Multiple VC5 units can be used in tandem to support larger workpieces or complex assemblies. - Complete with Connection Kit
Each VC5 comes with a three-piece replacement seal set, a 1-metre transparent air hose, and a VC146 quick-connect fitting for fast integration with standard workshop compressed air systems. - Efficient Operation
Requires only standard shop air at 5.5–7 bar (80–100 psi) and consumes minimal air—making it both powerful and economical to run.
Specifications:
- Clamping Force: Up to 800 g/cm² (11.4 psi) at 6 bar
- Operating Pressure: 5.5 – 7 bar (80–100 psi)
- Air Consumption: Approx. 56 L/min at 5.5 bar
- Vacuum Area: 150 mm x 150 mm
- Unit Dimensions: 160 mm x 200 mm x 25 mm
- Weight: 410 g
- Mounting Holes: N/A
Included in the Box:
- 1 x VC5 Vacuum Clamp Unit
- 1 x Transparent Air Hose with 1/4″ Quick Connector
- 1 x Set of 3 Replacement Seals
- 1 x User Guide
Why Choose the VC5 Vacuum Clamp?
The Vac-Clamp VC5 eliminates the limitations of mechanical clamping by offering full, uninterrupted access to your workpiece. Whether you’re in a production shop or a one-person operation, the VC5 delivers clean, repeatable, and safe workholding in seconds.
Download the VC5 instruction booklet
Will the VC4 be a better fit?
The Vac-Clamp VC4 (Link Here) is the “fixed in place” alternative to the VC5
